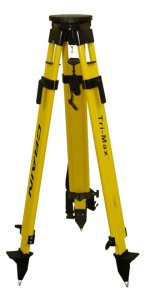

The Tri-Max is the only surveying grade tripod with certified accuracy, highly recommended for all servo driven and robotic total stations, 3-D laser scanners or construction lasers
- The revolutionary design of this tripod series means this tripod will meet ISO standard (12858-2-H) right out of the box, and after years of field use
- Features a 6-5/8-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point
- A retaining system, which prevents leg kick out and accidental falls on slick surfaces, is stored on the inside of the leg and can be left in place when the tripod is not in use
- The large footbed is there to facilitate solid planting for stability
- The shape and size of the foot are designed to allow for a solid placement on any terrain
- The foot is equipped with a replaceable point and a retention loop for use with a safety strap
- The Tri-Max can handle equipment up to 65 lb (30 kg)
- Screw/Dual Clamp Lock type
- Black Hardware
- Extends 91 in (2.3 m)
- Collapsed 54 in (1.37 m)
- Fiberglass Legs
- Weighs 20.00 lb (9.00 kg)
