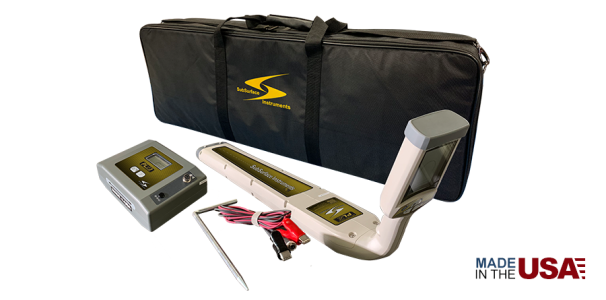

SubSurface Instruments Pipe and Cable Locator - PL-VF3

$3,425.00

Add to Cart:

Model: PL-VF3
Manufactured by: Subsurface Instruments
Ship Lead Days: 10

Replacement Available

No Longer Offered

PL-VF3

Equipped with a wide variety of locating modes and a 3W power output

Simple, accurate and affordable, the PL-VF3 Locating System will meet the demands of any locate task. This locator is designed for the locating professional, but it is simple enough to be used by anyone needing to locate.

The PL-VF3 Locating System is adaptable; frequencies and operational modes may be added or deleted on demand to suit the user’s locating needs.

Our innovative technology creates a remote link between the transmitter and receiver. Users can control the transmitter’s output power and frequency right from the hand-held receiver, eliminating the back and forth walking between devices.

A large, high-contrast LCD offers a clearly visible signal response in any lighting. Automatic depth, automatic current, and proximal directional arrows are readable in the brightest sunshine or back-lit for viewing in dimmer conditions.

Whether the locate is measured in feet or miles, 3 watts of power and automatic impedance matching from 5 ohms to 25,000 ohms, ensure adequate signal. The PL-VF3 Locating System is a must-have for anyone needing a simple and accurate locator.

Standard Frequencies:

512 Hz, 8khz, 33kHz, 82kHz and 200kHz.

KEY FEATURES

Three button keypad simplifies the user interface
8 Locating Modes: the multi-channel processor allows for simultaneous field detection from a multiple antenna array ensuring accuracy
Transmits 2 frequencies at the same time
Customizable frequencies and operational modes
Automatic Impedance Matching Technology: maximizes your transmission range while minimizing power consumption
Remotely controls your transmitter from the receiver to more than 400 meters (437 yards)
High-Contrast LCD Interface with Backlight: guides the operator to the target location by providing all relevant data including continuous depth, current measurement, signal strength, and directional arrows
Constant Depth & Current Measurement: real-time updates online depth and signal condition
1 year warranty. Warranty extends to 4 years when registered within 30 days of original purchase
Made in the USA

TECHNICAL SPECIFICATIONS

Transmitter Available Operating Frequencies	Range from 12Hz to 200kHz
Transmitter Indicators	AC load assistance measurement, relative ohms, voltage, live voltage output, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to the receiver
Transmitter Load Matching	Automatic from 5 Ω to 25,000 Ω
Transmitter Output Power	3 power settings Low & Medium Frequency Range: 0.2w to 3w High
Transmitter Power Source	(8) “C” cell batteries
Transmitter Battery Life	Continuous: 8-15 hours (Dependant on load, frequency, power setting)
Transmitter Operating Temperature	-4° F to 133° F (-20° C to 55° C)
Transmitter Ingress Protection Rating	IP65
Transmitter Dimensions	8.5” x 5.8” x 2.5” (21 cm x 15 cm x 6 cm)
Transmitter Weight	C-cell: 2.2 lbs (1 kg) with batteries
Transmitter Country of Origin	United States of America
Transmitter Warranty	1 Year warranty. 48 Month (4 Years) Warranty when registered at http://www.ssilocators.com/warranty-registration within 1 month of the date of purchase.
Receiver Operating Frequencies	480kHz, 200kHz, 131kHz, 82.315kHz, 65.536kHz, 32.768kHz, 8.192kHz, 4.010kHz, 815Hz, 797Hz, 640Hz & 512Hz
Receiver Sonde	640Hz, 512Hz, 815Hz, 8.192 kHz & 32.768kHz
Receiver Passive Power Modes	50env & 60env, LiveSound TM; Radio Frequency; Rectified CP 50Hz & Rectified CP 60Hz
Receiver Antenna Mode	Simultaneous peak/null (dual horizontal antennas & vertical antenna), pin-point peak (dual horizontal antennas), directional guidance, peak (single horizontal antenna) & null (single vertical antenna)
Receiver Display	Indicators back-lit segmented LCD bar graph, battery condition, continuous mode signal strength, depth measurement, line orientation, left/right line guidance, operating mode, volume level & function indicators Audio Indication Variable pitch & Live Sound. 4 volume selections including mute. Current measurement display indicates the relative current
Receiver Power Source	(6) "C" Alkaline batteries
Receiver Battery Life	Continuous 30h. – Intermittent 82h.
Receiver Signal Strength	LCD bar graph, absolute signal strength 0-999
Receiver Gain Control	Left/ Right Guidance Mode: Automatic
Receiver All Other Locate Modes	Manual gain adjustment & automatic centering
Receiver Dynamic Range	126 dB
Receiver Depth Measurement	3 digit LCD readout of push-button measurement (1 inch – 30 feet) (.02m-10.6m) with accuracy > 5% of depth. (Digital measurement)
Receiver Operating Temperature	-4ºF to +133ºF (-20ºC to +55ºC)
Receiver Ingress Protection Rating	IP65
Receiver Dimensions	30.3” x 9.4” (77cm x 24cm)
Receiver Weight	4.2 lbs (1.9 kg)
