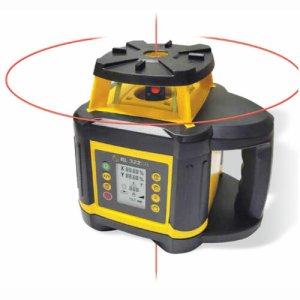

Site-PRO Model 27-RL322GR
The RL322GR features dual dial-in grade (±7.0%) with horizontal and vertical electronic self-leveling laser for precise leveling applications, ideal for both indoor and outdoor use. Integrated Laser Plummet for fast benchmark alignment.
- Electronic self-leveling accuracy up to 3/32-inch at 100-foot
- Working range up to 2,400-ft
- Ideal for both indoor and outdoor applications
- -7% to +7% in both X and Y axis dial-in grade (single slope: +/-10.00%)
- Illuminated display for precise level, grade, and vertical alignment
- Smart H.I. Alert System alerts user when laser has been disturbed or drifts
- Variable rotation speeds for a wide variety of jobsite visibility settings: 0, 60, 120, 300 and 600RPM
- Scan Angles: 0°, 10°, 45°, 90°, 180°; for maximum visibility
- Visible 90-degree layout beams (both up and down plumb) for alignment and squaring to ensure that walls or partitions are precisely aligned
- Enclosed Rotor Housing keeps laser safe from tough jobsite conditions
- Real-time remote control with LCD, adjusts instrument with range up to 65-ft
| SitePro 27-RL322GR Dual Grade Laser INCLUDES |
- Dual Grade Rotary Laser Transmitter RL322GR
- RD202 Laser Detector w/Clamp
- Rechargeable NiMH Battery Pack
- Alkaline Battery Pack
- Remote Control
- Target
- Glasses
- Carrying Case
- User Manual
|
SitePro RL322GR Dual Grade Laser SPECIFICATIONS
- Horizontal Accuracy +/-3/32-inch @ 100-foot
- Range with Detector (Diameter): 2,400-foot
- Leveling Type (Degrees): Electronic (+/-5º)
- Beam Rating: Class 3R, 635nm
- Slope/Grade Capability: Dual (+/-7.0%) (single slope: +/-10.00%)
- Battery Type: DC NiMH Battery Pack or (4) C Cell Alkaline
- Water/Dust Protection: IP65
SitePro RL322GR Dual Grade Laser APPLICATIONS
- Adjusting and checking elevations
- General construction leveling such as concrete forms and footers
- Vertical alignment and plumb such as form alignment
- Single and dual grade and excavating
- Commercial and residential construction such as leveling & aligning walls, installing ceilings & floors
INCLUDED SitePro 2-Way Real Time REMOTE
2-Way full function remote control allows real-time grade adjustments and other functions. Digital display provides information from SitePro RL-322GR Grade Laser
