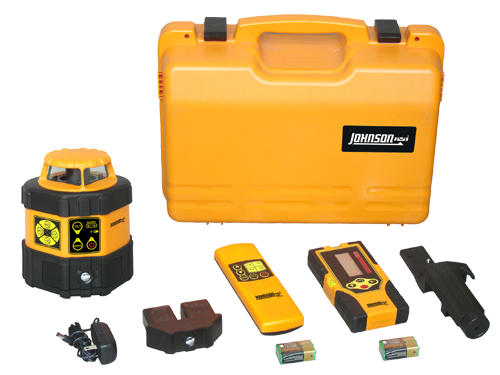

40-6537 Kit Includes > Laser, detector with clamp and 9V battery, remote control with 9V battery, 6V battery adapter, NiMH rechargeable battery pack, 6"AA" alkaline battery compartment (batteries not included), instruction manual with warranty card and a hard-shell carrying case
-
Electronic self-leveling and designed for outdoor use
-
Electronically-controlled dual slope feature
-
Reinforced metal roof and glass enclosed beacon
-
Electronic beam shield to turn the laser beam off in one to three quadrants
-
Vibrate mode ignores slight movements as in windy conditions
-
Visual and audible alarms when beyond leveling range
-
Height of Instrument/Tilt alarm function ensures product accuracy
Accuracy |
+/- 1/16"/100ft. (+/-1.5mm/30m) |
Auto-Leveling Range |
5 degrees |
Battery Life |
Approximately 17 hours with rechargeable battery pack; 8-17 hours with alkaline batteries |
Center Screw Thread |
5/8"-11 |
Dimensions |
5.512" x 5.512" 7.480" (140 x 140 x 190mm) |
Interior Range |
Up to 100` (30m) diameter depending upon light conditions |
Exterior Range |
Up to 2000` diameter (600m) with detector |
IP Protection Class |
66 |
Laser Classification |
Class IIIa |
Laser Wavelength |
635nm 10nm |
Leveling Method |
Automatic (Electronic) |
Maximum Power Output |
5mW |
Power Supply |
Rechargeable NiMH battery pack, or 6V adapter (included), 6 "AA" alkaline batteries (not included) |
Remote Range |
Up to 200` diameter (60m) with remote |
Rotation Speeds |
800 rpm |
Slope |
8 degrees |
Warranty |
3 Years |
Weight |
3.968lbs. (1.8kg) |
Working Temperature |
14 F to 113 F (-10 C to +45 C) |
