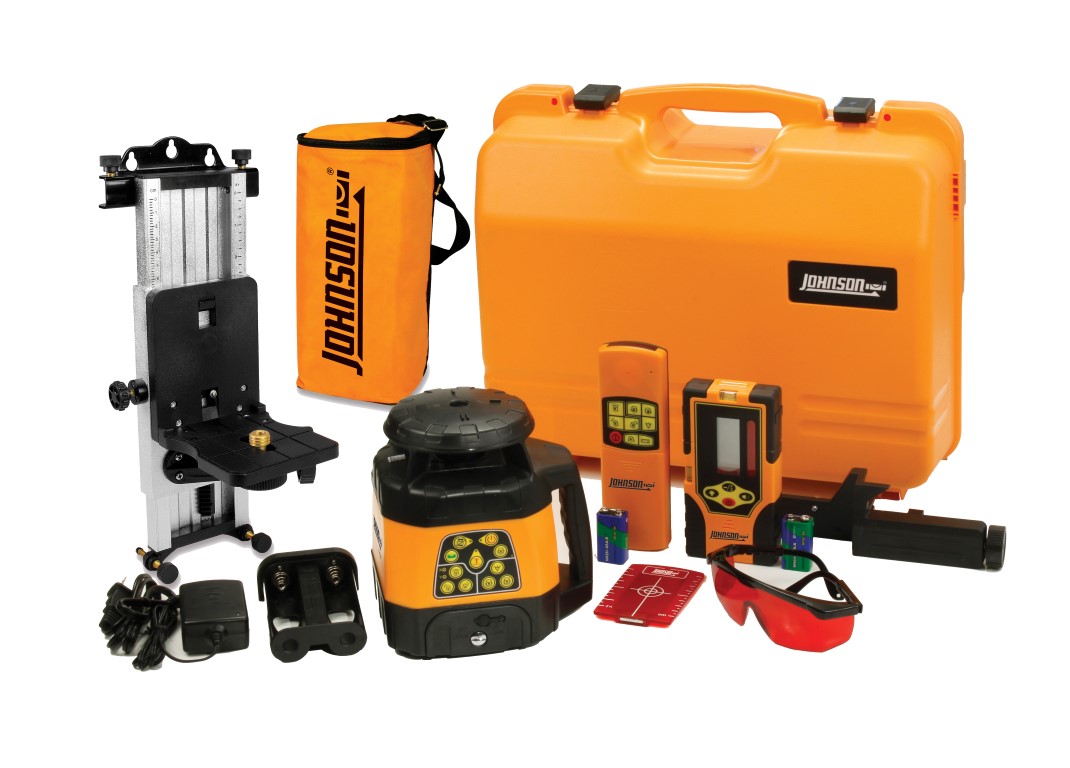

40-6529 Kit Includes > Laser, detector with clamp and 9V battery, tinted glasses, target, 6.4V battery adapter, alkaline battery comparent (batteries not included), remote control with 9V battery, NiMH rechargeable battery pack, instruction manual with warranty card, hard-shell carrying case
-
Designed for indoor and outdoor applications
-
Electronically-controlled dual slope feature
-
Electronic self-leveling horizontally and vertically
-
Laser beam modes include dot, two adjustable line lengths and two rotational speeds
-
Two rotational speeds: 200 and 500 RPM
-
Visual and audible alarms when beyond leveling range
-
Height of Instrument/Tilt alarm function ensures product accuracy
| Accuracy |
+/-1/8"/100ft. (+/-1.0mm/10m) |
| Auto-Leveling Range |
+/-5 degrees |
| Battery Life |
Approximately 24 hours with rechargeable battery pack; 40 hours with 4 "C" alkaline batteries |
| Center Screw Thread |
5/8"-11 |
| Dimensions |
8.62" x 6.29" x 7.95" (219 x 160 x 202mm) |
| Exterior Range |
Up to 1,500ft. diameter (500m) with detector (40-6529) |
| Interior Range |
Up to 200ft. diameter (60m) depending upon light conditions |
| IP Protection Class |
54 |
| Laser Classification |
Class IIIa |
| Laser Wavelength |
635mn +/-10nm (Red) |
| Leveling Method |
Automatic (Electronic) |
| Maximum Power Output |
<=5mW |
| Power Supply |
NiMH rechargeable battery pack (included in 40-6529) or 6.4V battery adapter (included) or 4 "C" alkaline batteries (included in 40-6526) |
| Remote Range |
Up to 200ft. diameter (60m) |
| Rotation Speeds |
200 and 500 rpm |
| Scanning Modes |
0°, 30°, 60° |
| Slope |
+/-5 degrees |
| Warranty |
3 years with store receipt |
| Weight |
4.4 lbs. (2kg) |
| Working Temperature |
+14°F to +113°F (-10°C to 45°C) |
