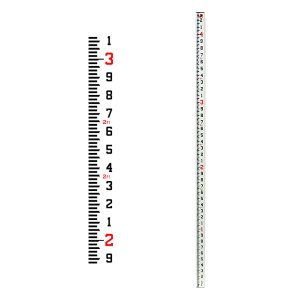

Crains durable CR Series Leveling Rods are constructed of non-conductive fiberglass and are rectangular in shape with rounded back corners for a better grip.
The scale width is graduated to fill the entire face of the rod and the CRs are equipped with stand-off ribs that protect the scale from wear.
- Rectangular shape of the leveling rod allows for laser sensor clamps to mount directly to the rod.
- Scalesare glare-resistant and wear protected.
- Measuring scaleallows user to read overall height measurements at eye-level, which is useful in making clearance and height measurements.
- CR Series leveling rods are water-proof and corrosion-resistant.
- Reliable, unbreakable buttons securely lock sections together.
- Easily removable locking mechanisms make disassembling for cleaning even easier.
- Detectors can attach anywhere along the Crain Rod, even at the top of a section.
- 5/8 X 11 thread mounting adapteravailable.
- Carrying casescan be purchased separately as an accessory to any CR Series leveling rod.
- One year warranty on all Crain Series Leveling Rods.
- Unlike aluminum rods, the CR Series is non-conductive, and will not dent, gall, or kink.
- The locking mechanism is tight and accurate, yet designed to resist jamming from sand and dirt.
CR Series Leveling Rods are constructed of rugged non-conductive fiberglass that will not gall,dent, or kink the way aluminum leveling rods do. These rods have a 1/2 x 20 thread in the top section and an adapter is available for purchase separately to adapt to 5/8 x 11 threads.
The measuring scale on the CR rods allows the user to read the overall height at eye level, and canCR Series rods have a leveling scale on one side and measuring scale on the other side. Thebe used to make clearance and height measurements.
The CR Series Leveling Rods are rectangular (square) in shape. The CR Series will accept alllasers without a need for a separate bracket to mount the sensor. The sensor clamps directly to the rod without an adapter and there are no dead spots, even at the top of the sections.
Model
|
Graduations
|
| 10ths |
Feet, Tenths, Hundredths |
| 8ths |
Feet, Inches, Eighths |
| E Metric |
Meters, Decimeters, Centimeters |
| Philly Metric |
Meters, Decimeters, Centimeters, 1/2 Centimeters |
| .5 Centimeter |
Meters, Decimeters, Centimeters, 1/2 Centimeters |
Export models are available in E, 1/2 Centimeter, and British E rods. These have an extrasection and a shorter collapsed length to fit in smaller vehicles.
Carrying cases are available as an accessory for purchase separately but do not come with the rod.
All Crain leveling rods have range markings, small red numbers between the foot and metermarks on the rods. These numbers tell you what range you are in, even if you cant see the foot or meter marks.Replacements parts are available for all Crain Leveling Rods and our Measuring Rulers. They are as follows:
- Replacement sections
- Complete lock sets (one set equips an entire rod and includes plugs, buttons, and springs)
- Individual lock assemblies (available for individual sections on all Leveling Rod Series except the CR Series)
- Sokkia Item # 065001
- Leica Geosystems Item # 8201529
