Overnight, 2nd Day and 3 Day UPS not available on this item
Tenths PLUS Cut/Fill in Feet 10ths 100ths - 5' 10-1/2" - 10' 1-3/4"

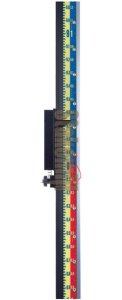

Laser Version - has track for detector
FEATURES
Aluminum front and rear rods.
Made of high strength clear anodized aluminum for lightweight rugged, dependable operation. They will not rust, split, splinter swell or warp in any environment.
Tape has heavy duty matte textured face.
Easy on the eyes in bright sunlight. Protects the tape numbers from wear and fading.
Tape lock grommets are oversized,
heavy duty brass. Greatly minimizes the problem of tape tearing.
Detector rail is black, high density, U.V.stabilized for long life.
Specifically designed to not become brittle when exposed to ultraviolet rays or direct sunlight.
Solid tape lock with internal brake slide.
Stronger, trouble-free operation.
Tape lock pin cannot puncture tape.
Designed not to tear puncture or rip tape when pushed against tape face instead of the grommet hole.
DuPont nylon parts.
Tough and rugged for long-lasting life. Same material used for ski bindings and motorcycle parts.
|
|
|
ROD MODELS
THE LARGEST SELECTION AVAILABLE FOR LASER OR OPTICAL INSTRUMENTS
LASER RODS
|
GR1000 |
10-foot - tenths plus cut/fill |
GR1000T |
10-foot - tenths |
GR1000I |
10-foot - inches |
GR1000ICF |
10-foot - inches - cut/fill only |
GR1000IT |
10-foot - inches - tenths |
GR1000M |
3-meter |
GR1000MCF |
3-meter plus cut/fill |
GR1450 |
15-foot - tenths plus cut/fill |
GR1450T |
15-foot - tenths |
GR1450M |
5-meter |
GR1450MCF |
5-meter plus cut/fill |
OPTICAL RODS |
GR10T |
10-foot - tenths |
GR10I |
10-foot - inches |
GR15T |
15-foot - tenths |
GR10M |
3-meter |
GR15M |
5-meter |
|
|
|
ACCESSORIES |
|
|
4-FOOT ROD EXTENSION
WORKS WITH ANY GR SERIES ROD!
Slides conveniently inside the rear rod when not in use. Allows you to extend the rod in one-foot increments up to four additional feet! 10-foot rods become 14-feet, and 15-foor rods become 19-feet.
|
CARRYING/STORAGE BAGS
STURDY BLACK CORDOVA NYLON WITH STRAP,
VELCRO FLAP AND POCKET FOR BRACKET AND DETECTOR
DETECTOR BRACKETS
RUGGED LIGHT WEIGHT EXTRUDED ALUMINUM
WITH BLACK ANODIZED FINISH
Click here for pdf
Rods measure 5 feet 11 inches in height when collapsed - shipping box is 71" x 4" x 5" - UPS charges a fee for O/S
Item may drop ship from manufacturer
Sokkia Item #
Leica Geosystems Item # 8209210
