SitePro CORS 2" pipe Tiit Monument Mount (10 pcs req)

NOW REQUIRES 10 UNITS TO ORDER - ALLOW UP TO 90 DAYS PRODUCTION AND SHIPPING

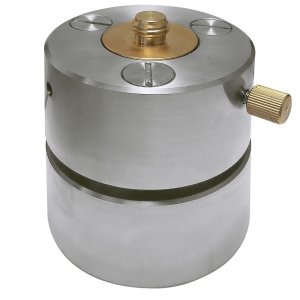

The brass 5/8 x 11 male stud is removable and adjustable in azimuth. It is held in location by set screws.

The adapters are leveled by three adjusting screws with a tilt range of +/- 7 degrees.

Weighs 6.80 lb (3.08 kg) Imported

The #07-2072-Series’ female base is threaded to match the male pipe used.

Topcon Antenna GR3-1A users, be sure to order monument adapters and extension #2072-001. The extension adds 1-inch (2.54-cm) to the height, which enables easy access to cabling.

For more information on the national and cooperative CORS network, visit the National Geodetic Survey's CORS page at: http://www.ngs.noaa.gov/CORS/Adaptors/

For information on national pipe thread standards, visit: http://en.wikipedia.org/wiki/National_pipe_thread

Picture shows a typical installation, those items are not included
