SECO USA 3 Inch CORS Adjustable Monument Mount 2072-32

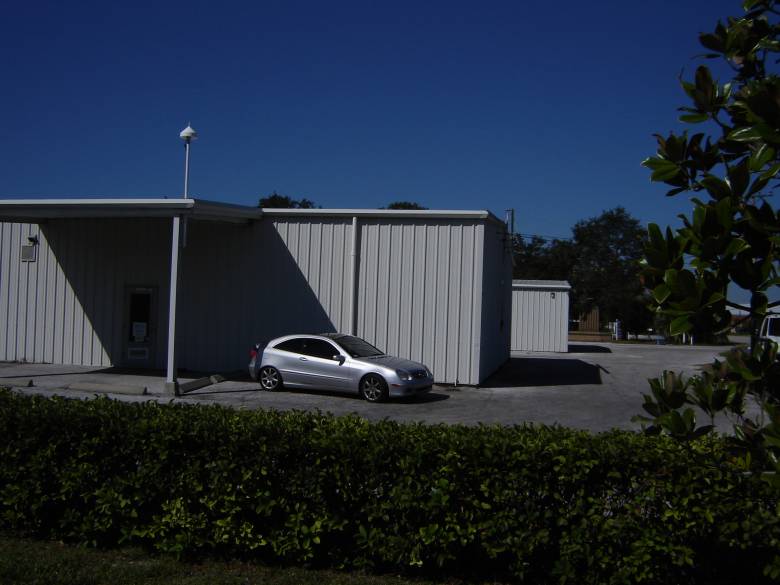

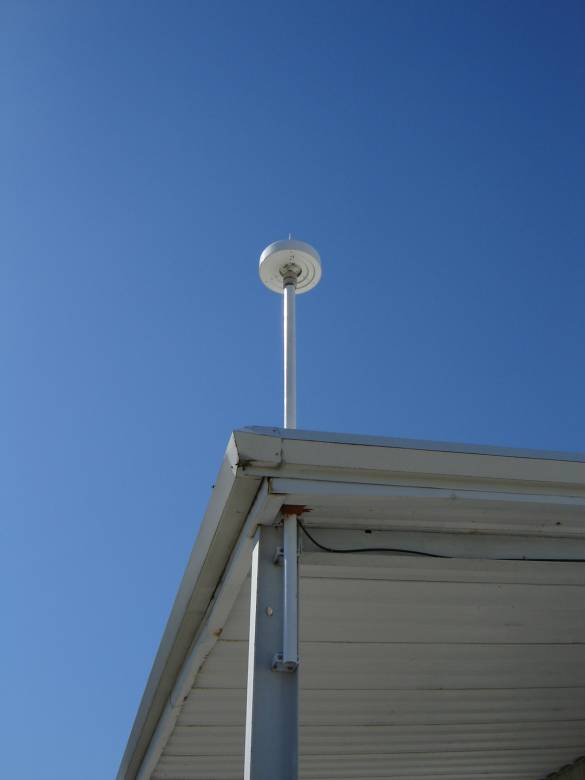

SECO’s new #2072-Series 303 stainless steel adapters are the perfect link between your GPS antenna and mast for your network antenna solution.



The brass 5/8 x 11 male stud is removable and adjustable in azimuth. It is held in location by two set screws.



The adapters are leveled by three adjusting screws with a tilt range of +/- 7 degrees.

The adapter has 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm)

The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm).



The height below the brass 5/8 x 11 stud to the shoulder is 0.463 inches (1.18 cm).

Weighs 6.83 lb (3.10 kg)

The #2072-Series’ female base is threaded to match the male pipe used.



The axis height is engraved on the outside of the monument.



Topcon Antenna GR3-1A users, be sure to order any of these monument adapters and extension #2072-001. The extension adds 1-inch (2.54-cm) to the height, which enables easy access to cabling.



For more information on the national and cooperative CORS network, visit the National Geodetic Survey's CORS page at: http://www.ngs.noaa.gov/CORS/Adaptors/



For information on national pipe thread standards, visit: http://en.wikipedia.org/wiki/National_pipe_thread



2072-32

MPT 3.5 x 8 TPI  Pipe
