IMPERAIL MEASURMENT UNIT
OM5F is a measurement scale Read the fine level (Parallel Plate Micrometer).
Has crossed the channel at 0.1 mm., Base numbered intervals of 0.5 mm.
Read the numbers by about 0.01 mm.
Details:
Works on Auto Level SOKKIA automatic levels of B20, as shown, not included
1. Point the camer to visualize the location and length 215 mm.
2. The magnification is 32 times the diameter of the opening of a 42 mm lens.
3. The sight distance of 100 m. The width 2.3 mm., Or 1 degree 20 '.
4. The minimum clear visibility distance of 0.3 m.
5. The multiplier constant: 100 / cost plus fixed: 0.
6. Automatic Compensator Working range +/- 15 '.
7. Standard Deviation of taking a trip - (Double Run Leveling) +/- 0.7 mm. / Km
8. Resolution to adjust the camera to +/- 0.3 ".
9. Sensitivity of circular bubble level, 10 'to 2 mm.
10. Got a flat plate angle 360 degree, with the Minimum Directed by every 1 degree.
11. Fast-degree horizontal diameter of 103 mm size.
12. Weight of the camera of 1.85 kg.
13. Barreled waterproof And dust levels IPX6
14. The box camera is suspension.
15. A tripod of aluminum. Up - down
16. Standard Equipment Are set out in the guide books

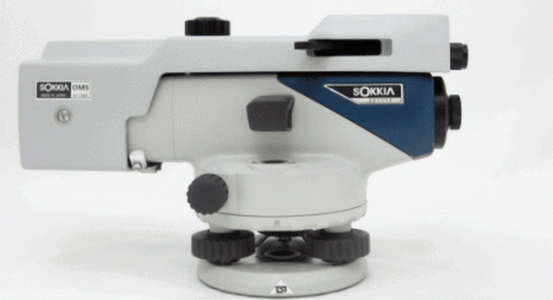

Measuring the SOKKIA brand of Parallel Plate Micrometer OM5.
1. Scale instruments Read the detailed level using Parellel Plate Micrometer.
2. The machine is a piece of the same (not available separately) for ease of use.
3. The machine is designed to use with the camera. Without the need to adjust the water level bubble round tube.
4. A glass strip Read through the peephole with magnifying Eyepiece so obvious.
5. The scale of measurement is in the range of 10 mm. (Range 10 mm) is divided into 100 channels.
6. There is a limit of 0.1 mm (Smallest Graduation 0.1 mm) with numbered intervals of 0.5 mm.
7. Read the number by about 0.01 mm. (Estimate 0.01 mm).
8. Suspension bag
Auto level not included
SPECIAL ORDER
