The SitePro XC-Series automatic levels are designed for the contractor that needs optimum range and accuracy. Available in both 24-power and 28-power lens' featuring crisp, clear optics that allow for brighter, sharper images-especially in low light conditions.
- Magnetically dampened, automatic compensator
- Horizontal and vertical cross hairs with 1:100 stadia lines - measures level, alignment & estimates distance
- Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
- Solid leveling metal base with three precision leveling screws provides stability in all weather and jobsite conditions
- 360 degrees Graduated horizontal circle in 1-degree increments for layout applications
- 8' / 2 mm circular bubble vial with 90-degree mirror for quick and accurate set-up
Specifications:
- Magnification: 24X
- Leveling Accuracy: 1/16-in at 150-ft (1.5mm @ 45m)
- Angular Accuracy: 1 degree
- Working Range: 300-ft (92m)
- Field of View: 1 degree 30' or 2.6ft@100ft
- Minimum Focus Distance: 1.64 feet
- Compensator range: +/-15'
- Comp Setting: +/-0.5”

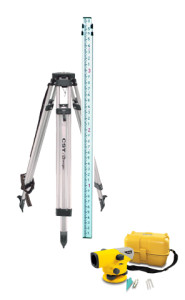

Includes:
- Standard Alum Tripod
- 12.5 Ft Alum Grade Rod in 8ths
- Level
- Lens Cover
- Plumb Bob
- Adjustment Tools
- Carrying Case
- User Manual
